Impregmenant Storage Chamber: Stores impregnant as ambient or at reduced temprature whichever is recommended by the impregnant manufacturer. Chilling plant can be offered if required. Facility for mechanical/ motorized stirring, if required.
Vacuum Plan & Instruments Mfg. Co. Ltd., since 1965, is the leading manufacturer of various plants for the electric industry in India. Awarded the coveted " Import substitution Award" by the Government of India on numerous occasions, the company has more than 1517 installations of its equipment virtually in every part of the country. The company has an extensive clientele including all the major power corporations, Public sector, Enterprises, Electricity Boards and Large & Small Electrical Manufacturers. The company has successfully executed joint projects with Micafil of Switzerland in India and abroad. Today, the company has a global presence with successful installations in various countries in Asia, Africa, Middle East and Pan Pacific countries.
Optional

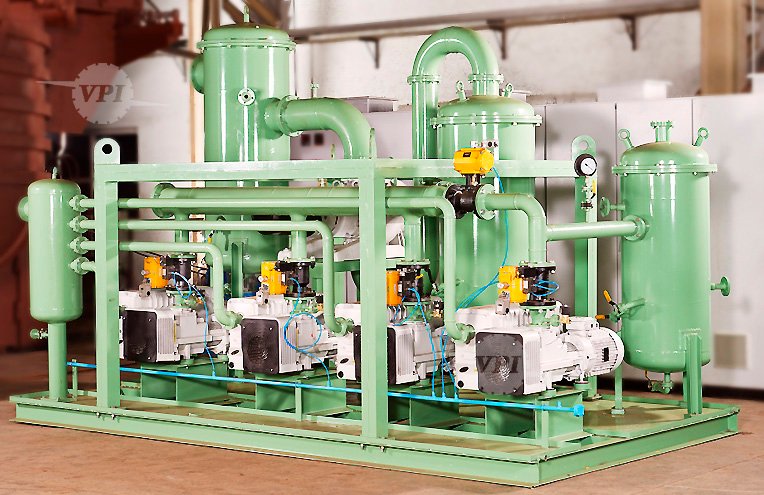

Vacuum System
Quality vacuum pumps and accessories.
Filter
Filter on return resin line.

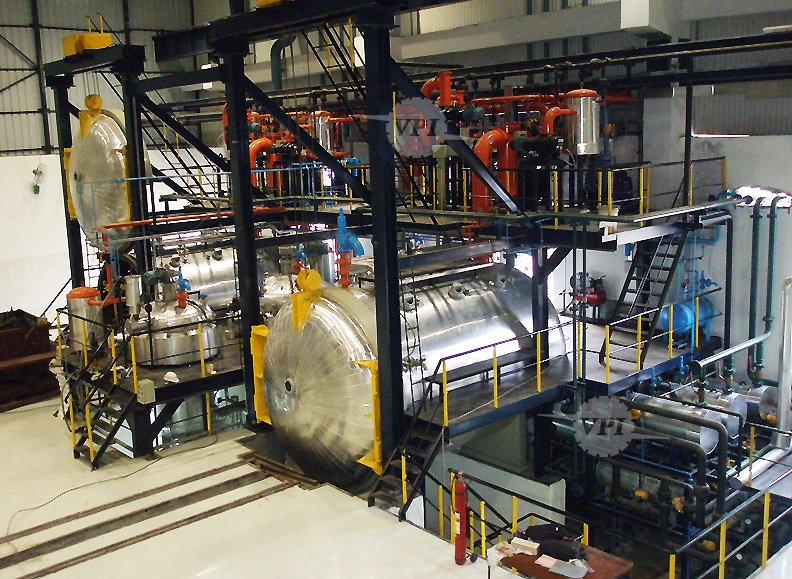

Introduction
Good insulation as well as protection from ambient conditions is vital for electrical equipment. Impregnation under vacuum using various resins and varnishes is the best solution for this purpose. Typical applications are electromagnetic coils, small transformers, instrument transformers, chokes, sintered bushes and similar products. For applications such as large motors and generators, high voltage transformers, special transformers, etc., it is required to apply pressure after impregnation.
Main Components

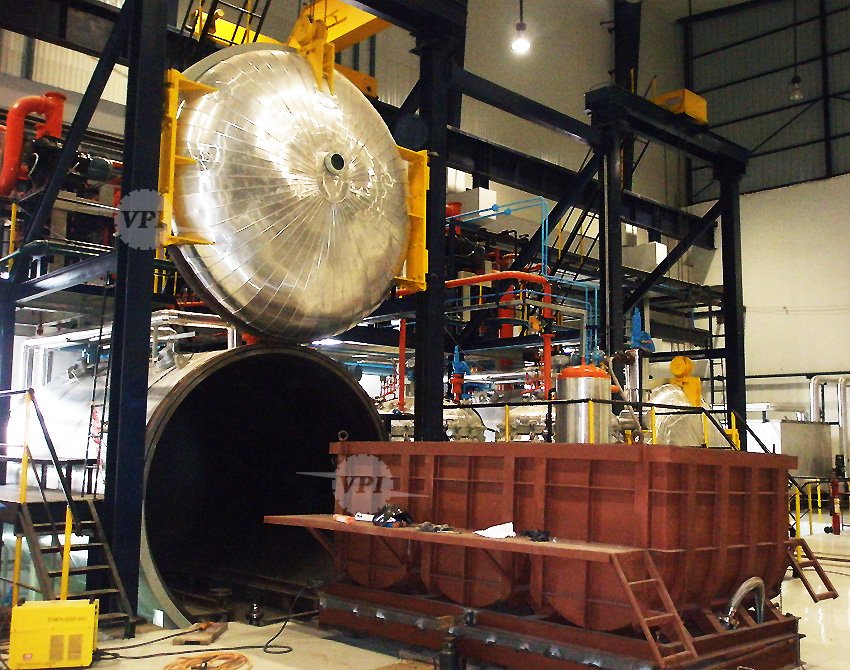

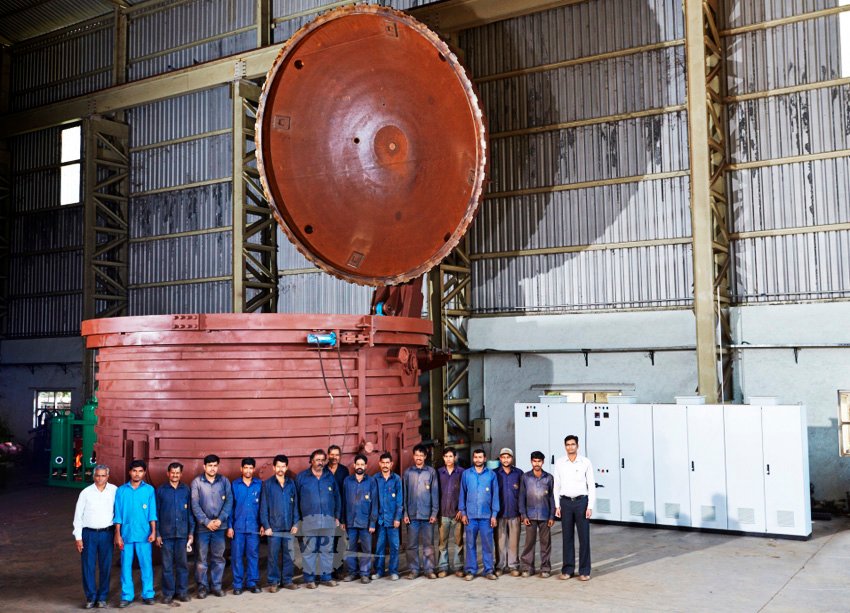

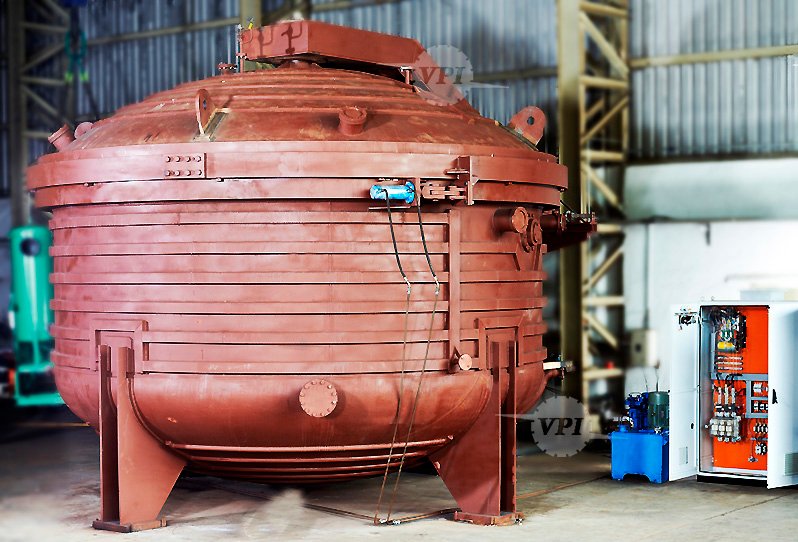

IMPREGNATION CHAMBER
A vacuum tight vessel with bolt-clamp or boltless quick clamping flanges can be provided. The mechanism can be manual or hydraulically actuated. This is possible can be offered with a heating/cooling jacket or a limpet coil. Safety pressure release valves are provided.
Valves
Vacuum- tight manual, automatic and anti suck back valves.
Control Panel
Centralized control panel with electrical switchgear and an illuminated flow diagram.
Instrumentation & Automation
A wide choice of control and monitoring equipments can be offered to suit customer requirements. Advanced data logging and report generation system can be provided with matching transduvers, transmitters and instrumentation to match. PC based or programmable logic controlled, full automatic system can be offered. Intelligent program features such as "Abnormal Process Time Warning", Alpha-Numeric Alarm Annunciations, "Assurance Hol Poin Interlocks" can be provided. Operator Dialogue Facility, Paging, Networking etc. can be afford too.
Note-1
Certain resin may contain volatile and explosive solvents/vescosity diluents. Heating is never recommended in such a case.
